Motorized Ceiling Flip Down TV Mount

      Motorized Ceiling Flip Down TV Mount

      Model #
      qty limit cart limit
      Instruction Manual MFD 42
      Instruction Manual MFD 70

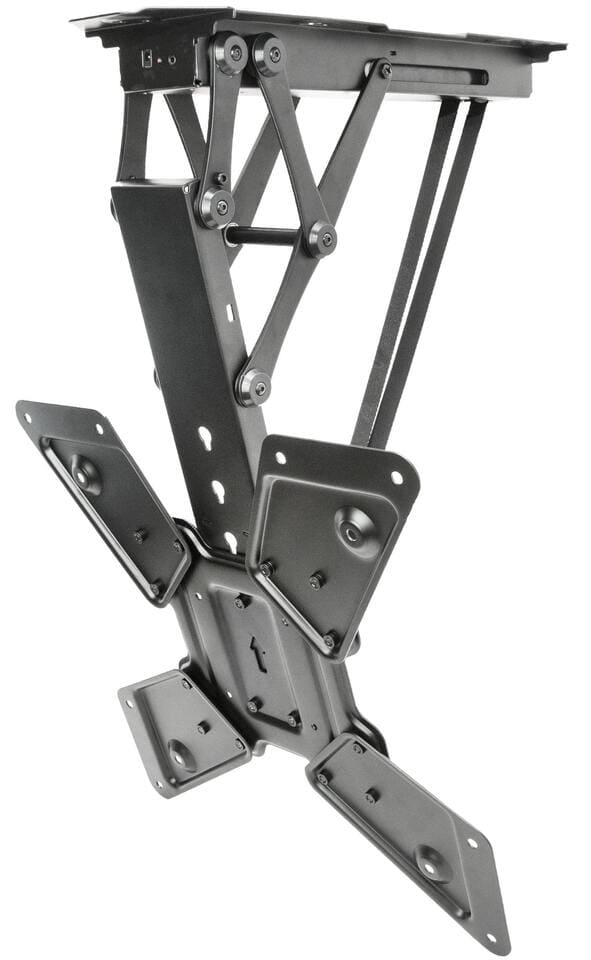

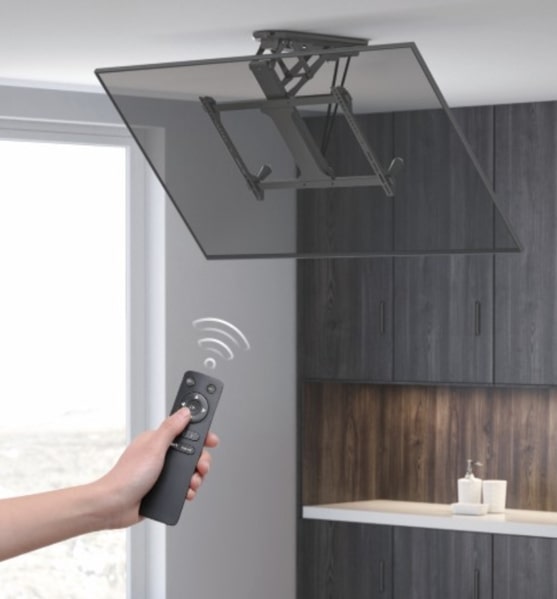

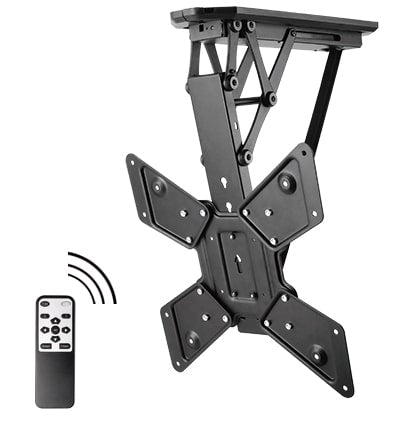

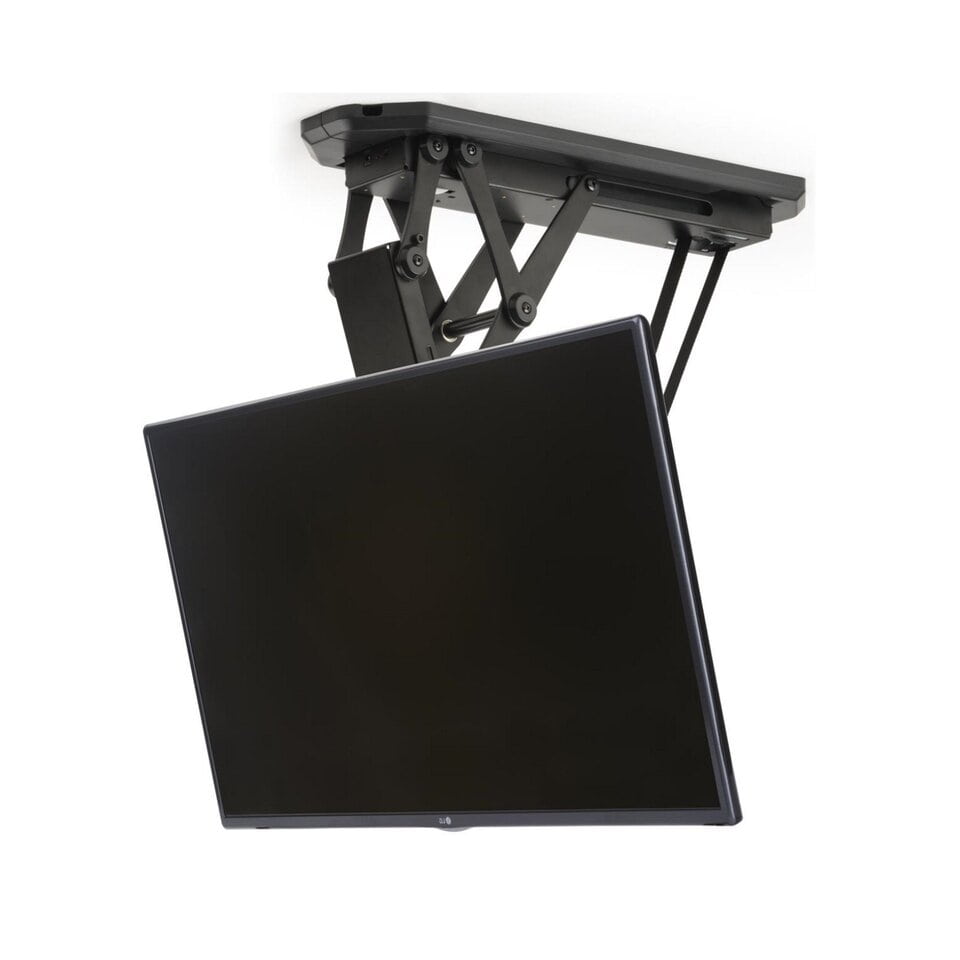

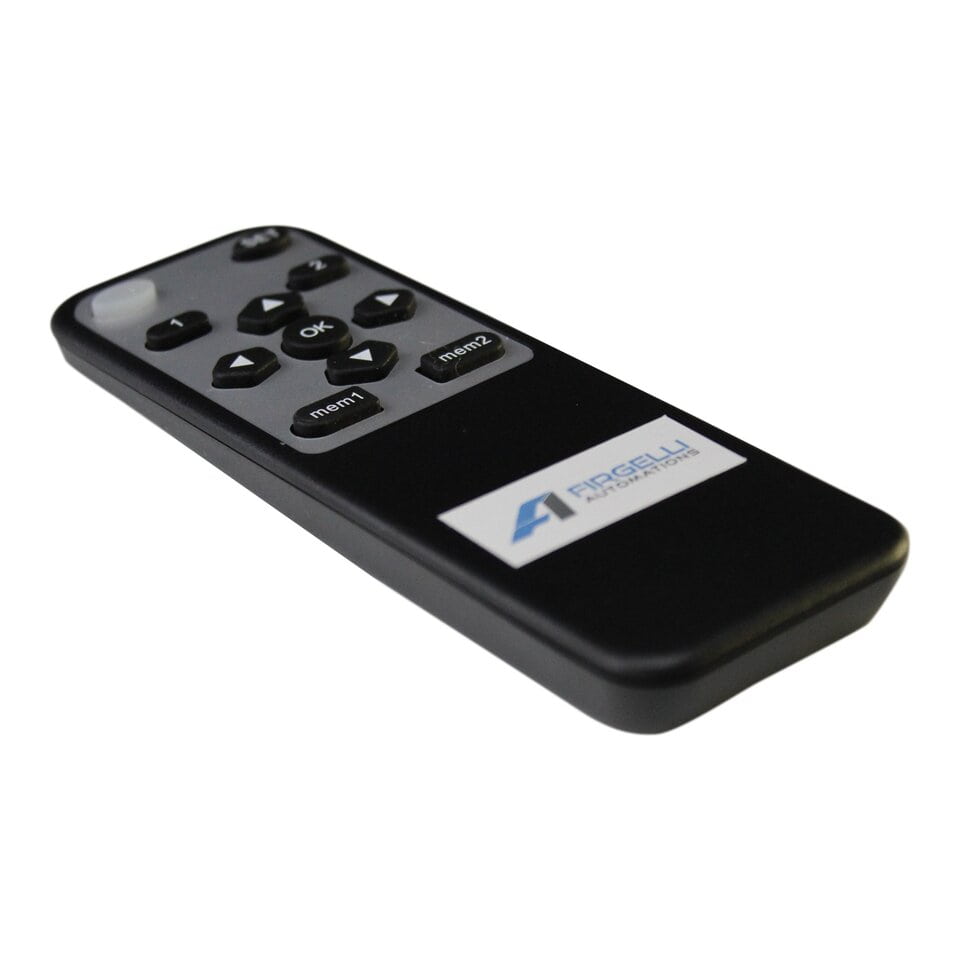

      The Firgelli Motorized Ceiling Flip Down TV Mount offers you the possibility to mount your TV in the ceiling or on a pitched ceiling even. Press the button on the remote button and the TV quietly and smoothly flips down to the position you want with the ability to also program a certain position you prefer.

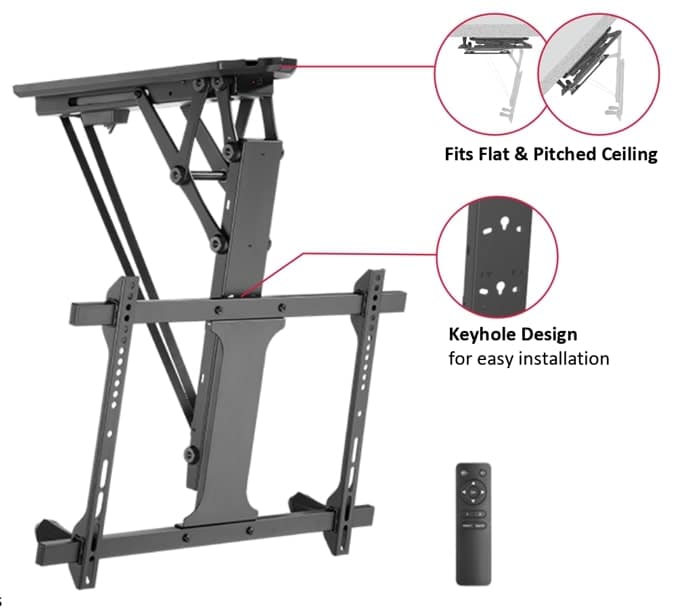

      The Motorized Ceiling Flip Down TV Mount supports all TVs from 19"- 70"  Max weight of 70 lbs. The angle goes from 0 to 75 degrees.  This mechanism is ideal for hiding your TV up in the ceiling and then the TV drops into your viewing angle. This Flip Down Ceiling TV Mount Mechanism offers many possibilities and options for configuration, installation is very easy through our flexible design. These Flip down Ceiling TV Lifts are plug and play, you simply just need a power source to operate them.

      Model:  FA-MFD-42  FA-MFD-55 *DISCOUNTINUED* FA-MFD-70
      TV Size  19 inch - 42 inch 32 inch - 55 inch 32 inch - 70 inch
      Input: 100V - 240V 50-60 Hz 1a
      Output: 24V 1.5a
      By Mounting Pattern:  100mm or 200mm 100mm, 200mm, 300mm or 400mm  200mm, 300mm, 400mm or 600mm
      Material: Steel, Plastic
      Thickness of entire unit: 4 inches (102mm) 4 inches (102mm) 4.3 inches (108mm)
      Surface Finish: Powder coating, Plastic
      Available Color: Black
      Product Size With Open Position:

      557mm x 435mm x 108mm (21.9" x 17.1"x 4.0")



      557mm x 435mm x 108mm (21.9" x 17.1"x 4.3")

      Rated Load: 70 lbs.
      Temperature Range: -5 to 40 degree Celsius
      Level Adjustment: ±3°

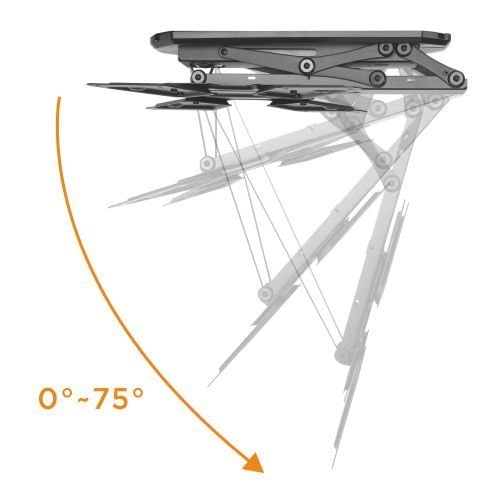

      Tilt: 0-75°
      Bubble Level: No
      Cable Management: Yes
      Motorized: Yes
      Curved TV OK: Yes
      Certification: CE /CE REACH 173
      Power Plug: Yes
      User Manual : Yes
      Installation time: 1-2 Hours
      Product Videos

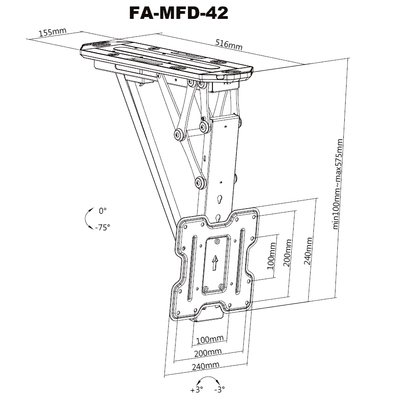

      Product Dimensions

      flip down tv lift

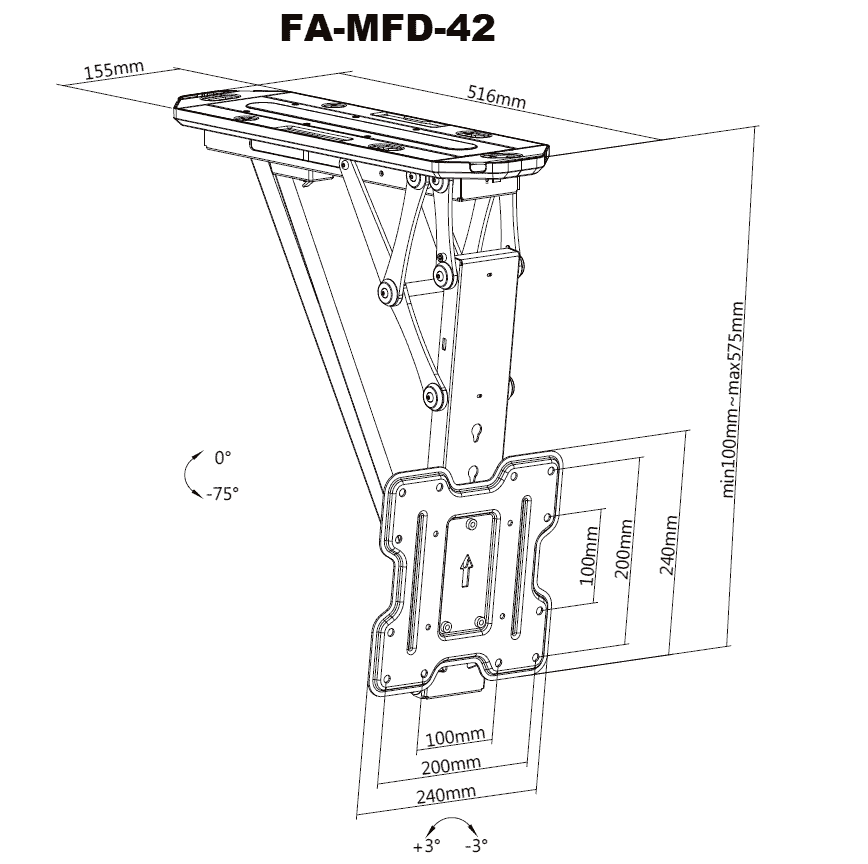

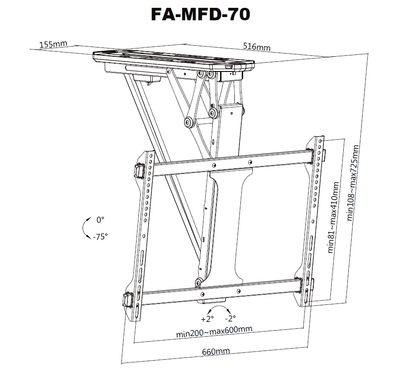

      flip down tv lift dimensions
